BrandIndramatBosch Rexroth · Indramat

Product identificationHVR03.2-W045N

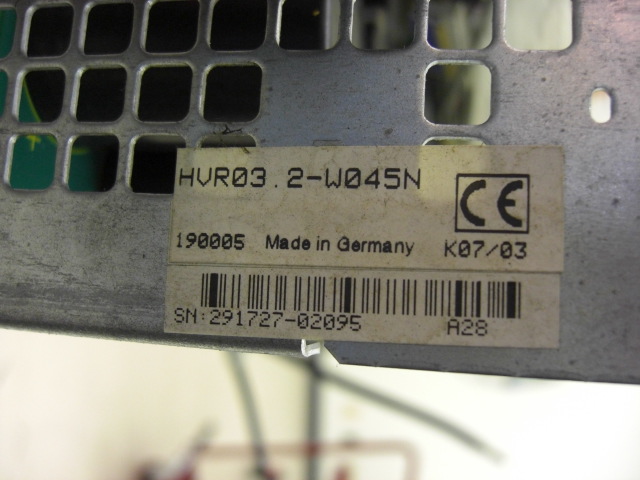

Match the complete nameplate, including every suffix. Ask Litco for current photos of the unit being quoted.

Power Supplies · HVR family

HVR03.2-W045N

Name: HVR03.2-W045N DIAX 04 HVR regenerative power supply
Brand: Bosch Rexroth Indramat

DIAX 04 HVR regenerative power supply

A 45 kW-class regulated regenerative supply in the second-generation HVR family.

Call to check stock and condition

Call Now · 210-680-9570 Quick Quote

Ask about repairing this exact unit →

Product description

What to know about HVR03.2-W045N

The HVR03.2-W045N is a Bosch Rexroth Indramat HVR power supply for DIAX 04 drive systems. Unlike an HVE unit, the HVR family uses a regulated DC bus and can return regenerative energy to the mains when the machine decelerates.

Published project-planning data identifies the HVR03.2-W045N with a 3 × AC 380–480 V mains range, 50–60 Hz input and a regulated 750 V DC bus. The 045 type code identifies the 45 kW family configuration, and W denotes cabinet air cooling by a built-in blower.

Confirm the complete nameplate, line conditions and connected drive load before substitution. Litco can check shelf condition and supply current unit photos with a quote.

Part-number and material references

Identification references

Formatting variants and material references

HVR 03.2-W045NHVR032W045NR911278341

Can’t find your exact suffix?

Litco’s inventory is not limited to the pages online.

Send the complete nameplate. Litco can check availability or discuss repair.

Call Litco now about this part →

Compatibility checklist

Before replacing HVR03.2-W045N, match the complete nameplate and machine configuration.

Complete supply code: Verify the family, design, power rating, voltage class, cooling field, material number and all suffixes on the nameplate.
Cabinet configuration: Identify incoming mains, transformer and line components, connected drive modules, total axis load and DC-bus arrangement.
Braking and cooling: Record bleeder, regeneration, braking resistor, fan or cooling hardware and the machine duty that loads the supply.
Fault evidence: Include fault indicators, fuse or breaker history, operating state and clear connection photos before the module is removed.

For repair, send the fault or symptoms. Helpful photos show the tag, complete unit, mounting and connections.
