BrandIndramatBosch Rexroth · Indramat

Product identificationMDD093A-N-030-N2L-130PB0

Match the complete nameplate, including every suffix. Ask Litco for current photos of the unit being quoted.

MDD093A · complete type code

MDD093A-N-030-N2L-130PB0

Indramat digital AC servo motor

A complete MDD093A configuration for a digital-drive servo axis. This page separates the housing, speed, feedback, centering, shaft, connector and brake fields that must match the installed machine.

Call to check stock, condition and price

Call 210-680-9570 Quick Quote

Product description

What MDD093A-N-030-N2L-130PB0 identifies

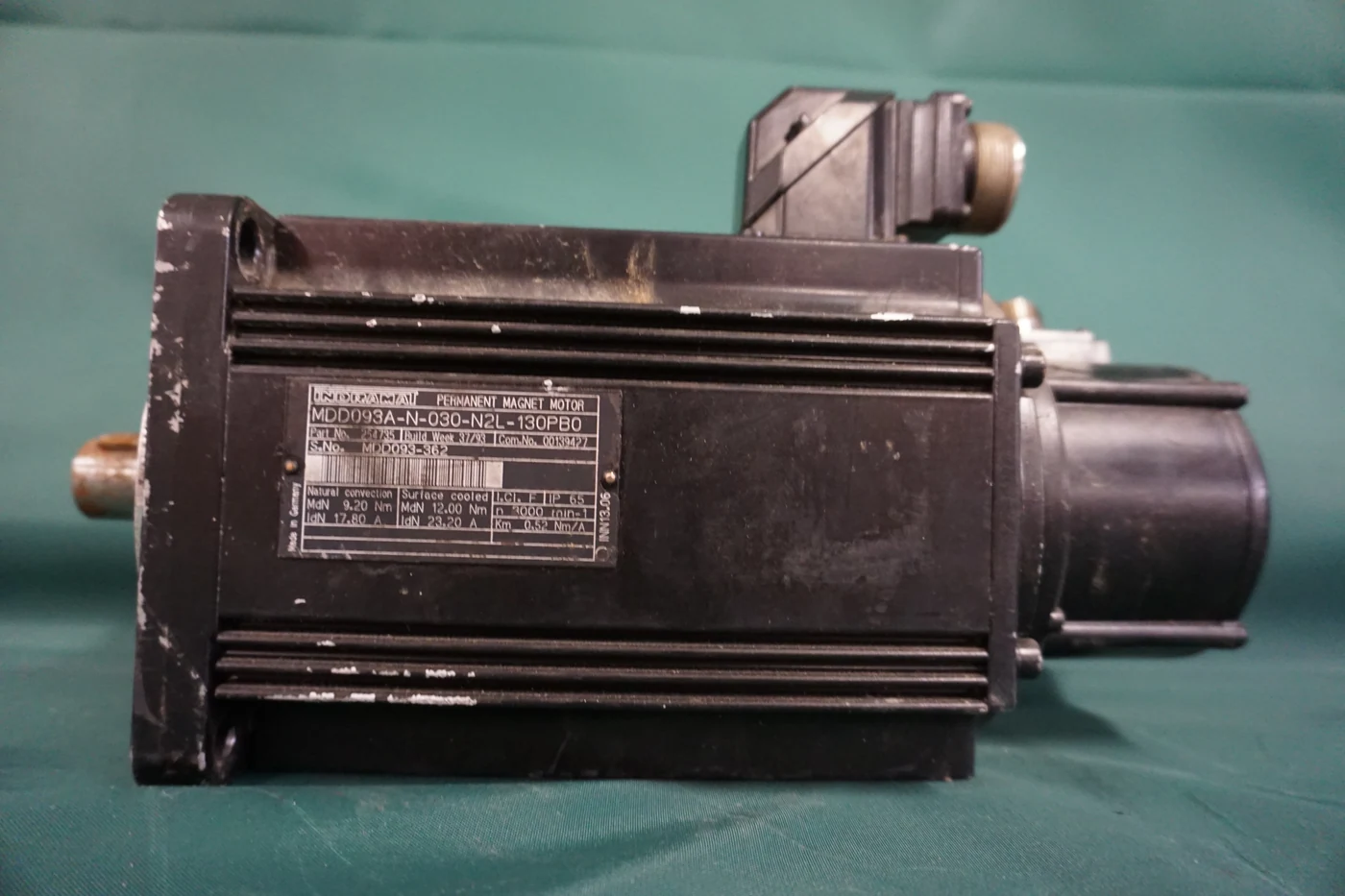

MDD093A-N-030-N2L-130PB0 is an Indramat MDD093A digital AC servo motor with a 3,000 rpm nominal winding. The complete suffix identifies its housing, feedback, centering, shaft, connector and brake configuration.

Values labeled “reference” belong to the manual’s MDD093A-N-020 winding, not automatically to this exact configuration. Confirm the motor-drive combination before replacement.

Full type-code breakdown

Exact type-code decoder

Read this configuration field by field

Motor platform

MDD motor for digital drive controllers

Motor frame / length

093 frame · A length

Housing design

Standard housing suitable for natural convection or an applicable surface-cooling arrangement

Nominal-speed code

030 · 3,000 rpm

Balance class

N · standard manufacturer balance-class code

Side-B shaft end

2 · standard design without side-B shaft extension

Motor feedback

Digital servo feedback

Centering diameter

130 mm optional centering

Output shaft

24 mm (k6) keyed output shaft; verify the mating key and hub dimensions

Power connection

Power connector to side B

Blocking brake

Without blocking brake

Compatibility checklist

Before replacing MDD093A-N-030-N2L-130PB0, match the complete nameplate and machine configuration.

Complete motor code: Verify the frame, motor length, winding or speed, cooling, feedback, shaft, brake and every factory suffix.
Mechanical interface: Compare the flange, centering diameter, shaft diameter and style, keyway, seal, mounting position and available machine clearance.
Electrical match: Record the feedback device, power and feedback connections, holding-brake voltage and the exact connected drive or controller.
Machine duty: Include the machine, axis, operating cycle, cooling arrangement and failure symptoms so a technician can evaluate the complete application.

For repair, send the fault or symptoms. Helpful photos show the tag, complete unit, mounting and connections.

Get a replacement or repair quote.

Call to check stock, condition and lead time. Your part number carries into the form.

Quick Quote Call 210-680-9570 Add photos or repair details →

More MDD093A configurations

Related exact type codes

Call to check stockMDD090A-N-030-N2M-110PB0

← Return to the MDD093A model page

Technical sourceBosch Rexroth Indramat MDD project-planning manual · Fig. 9.1, page 83

MDD 093 technical and dimensional data, manual pages 83–94; confirm the manual’s 1,500/6,000-rpm exception notes. Manual data distinguishes model references from exact winding values and usable motor-drive combinations. Match the full type code, connectors, drive and machine load.

Open Original Manual ↗Open MDD093 Type Code ↗
